D-Series: The single-cylinder diesel engine with revolutionary technology
DATASHEET

Hatz D-Series

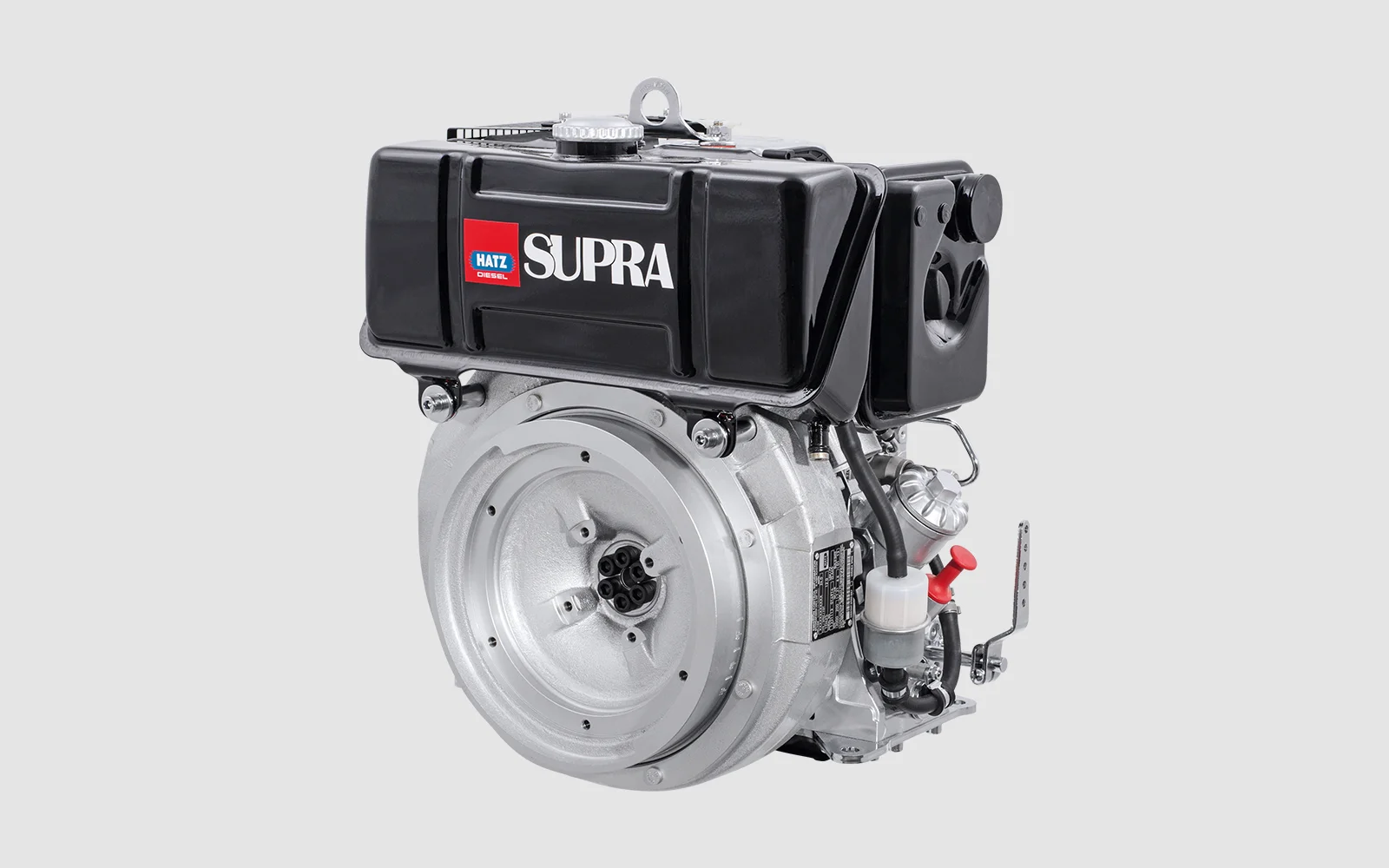

Hatz 1D42

1D42

  • Power
    3.3 - 7.0 kW
  • Torque
    22.5 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EU Stage V

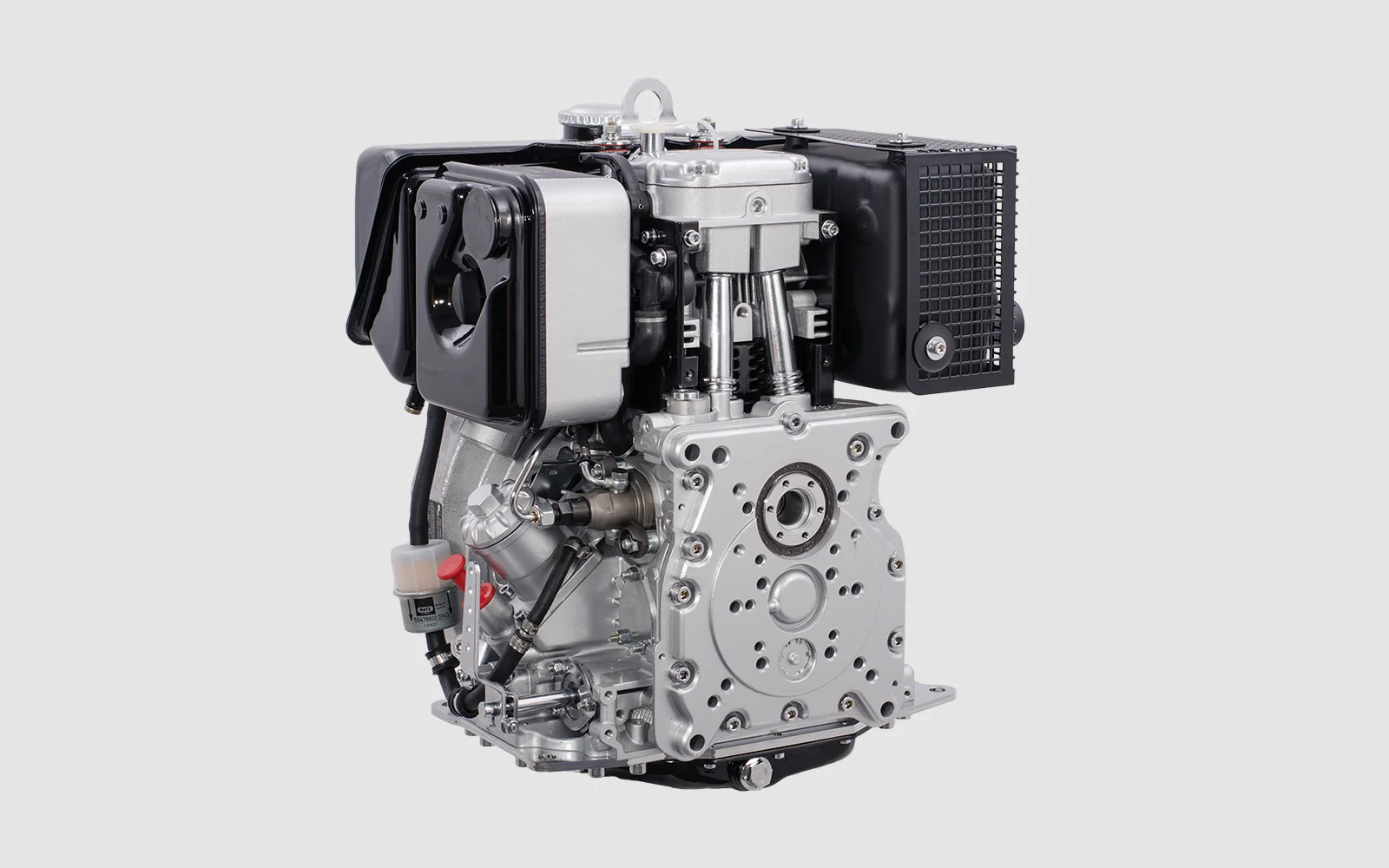

Hatz 1D50

1D50

  • Power
    3.7 - 7.5 kW
  • Torque
    24.8 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EU Stage V

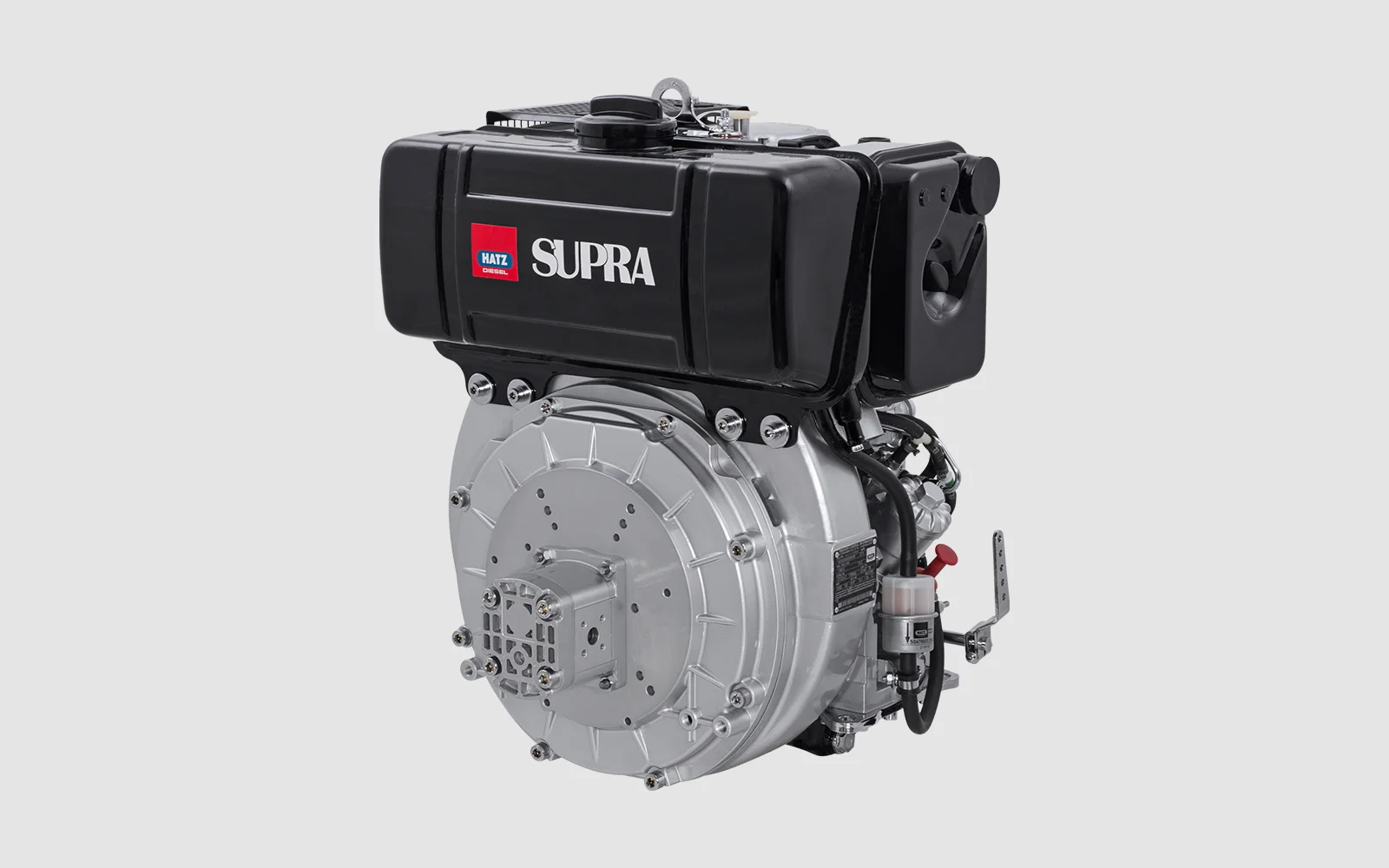

Hatz 1D81

1D81

  • Power
    5.5 - 10.1 kW
  • Torque
    36.3 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EU Stage V

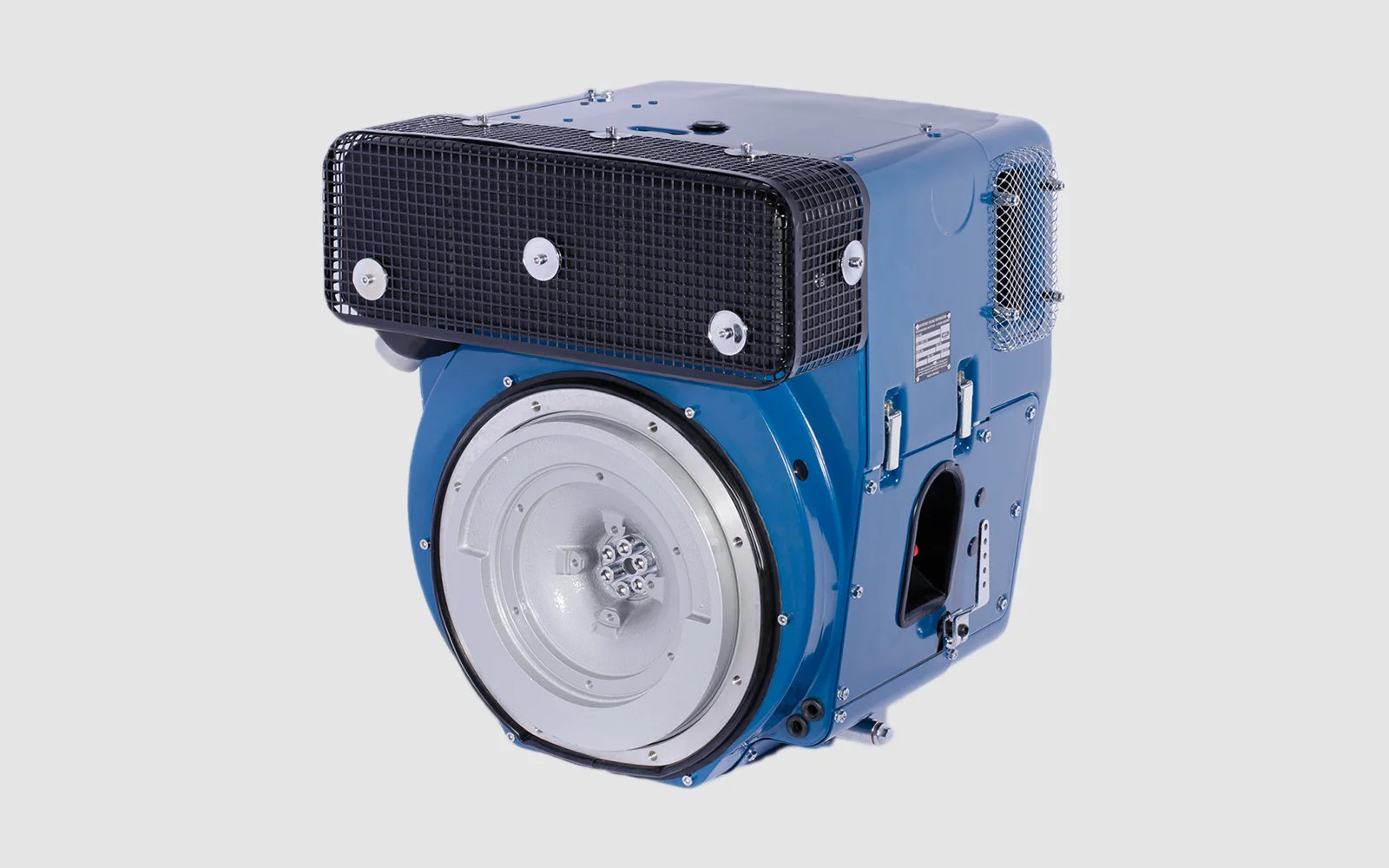

Hatz 1D81C

1D81C

  • Power
    5.4 - 9.6 kW
  • Torque
    34.4 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EU Stage V

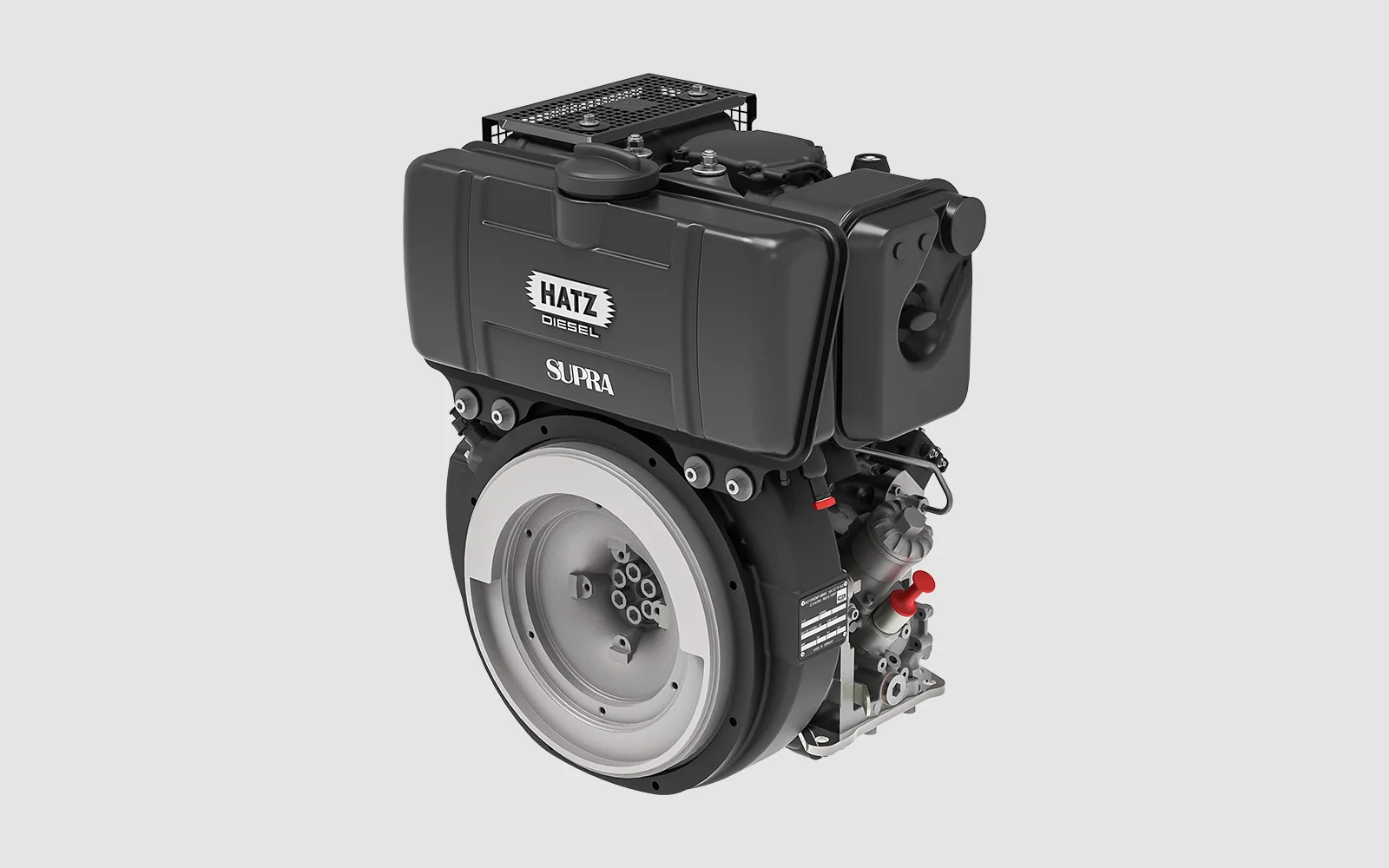

Hatz 1D90E

1D90E

  • Power
    5.7 - 10.5 kW
  • Torque
    39.3 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EU Stage V

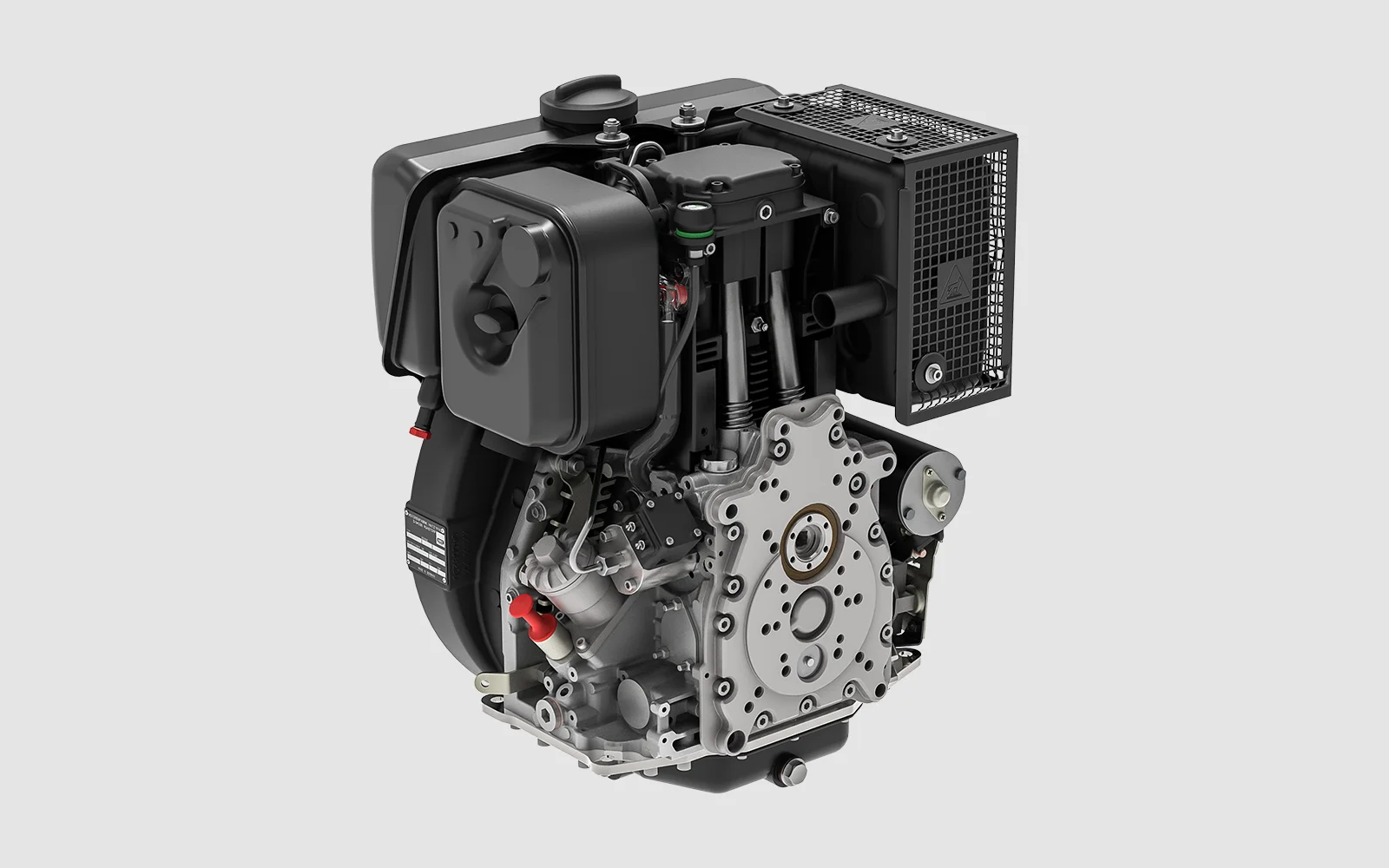

Hatz 1D90

1D90

  • Power
    6.4 - 11.2 kW
  • Torque
    40.7 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EU Stage V

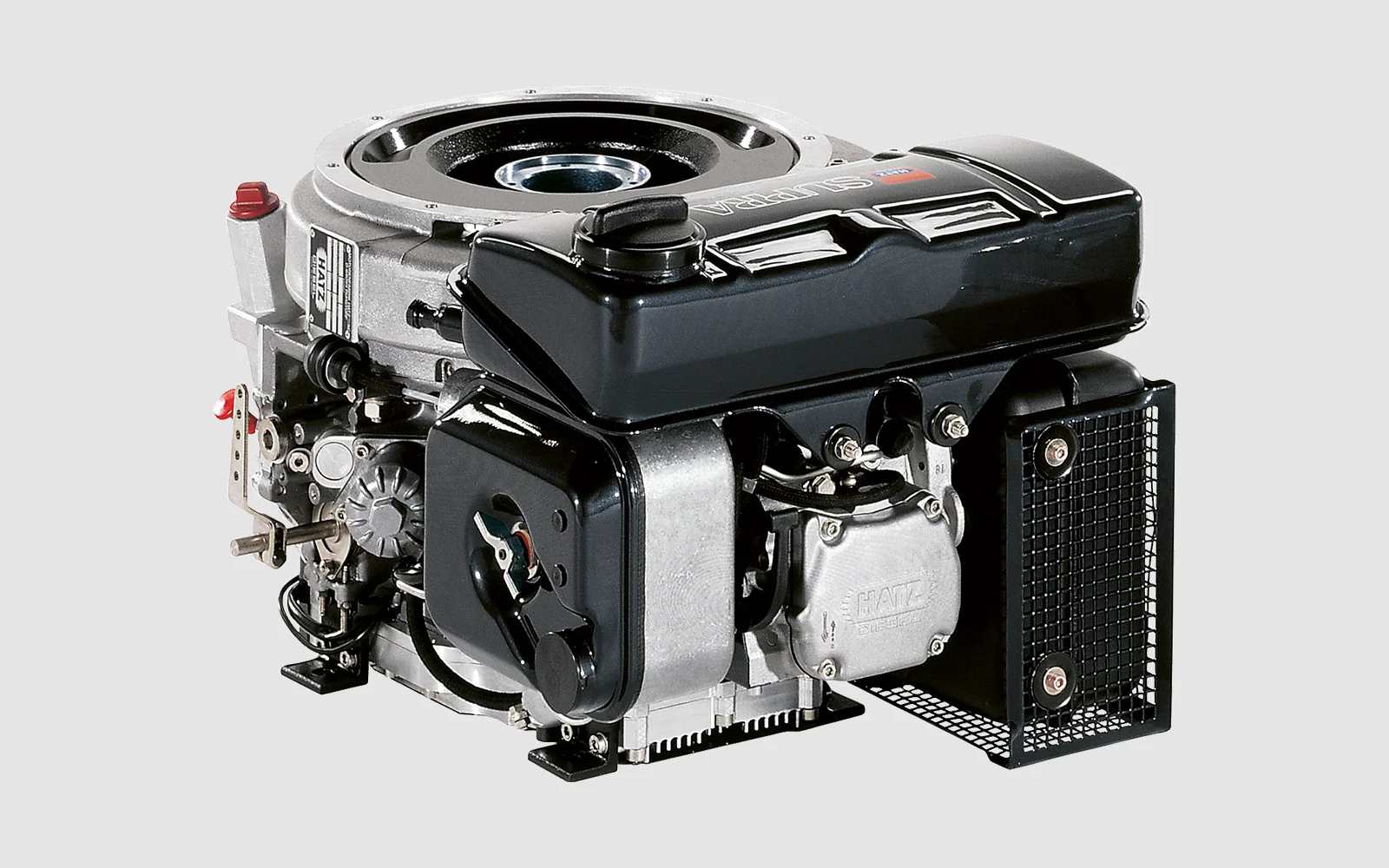

Hatz 1D90V

1D90V

  • Power
    6.4 - 11.2 kW
  • Torque
    40.7 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EU Stage V
