B-Series: Flexible Solution for All Applications
DATASHEET

Hatz B-Series

Hatz 1B20

1B20

  • Power
    1.5 - 3.4 kW
  • Torque
    10.3 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EU Stage V

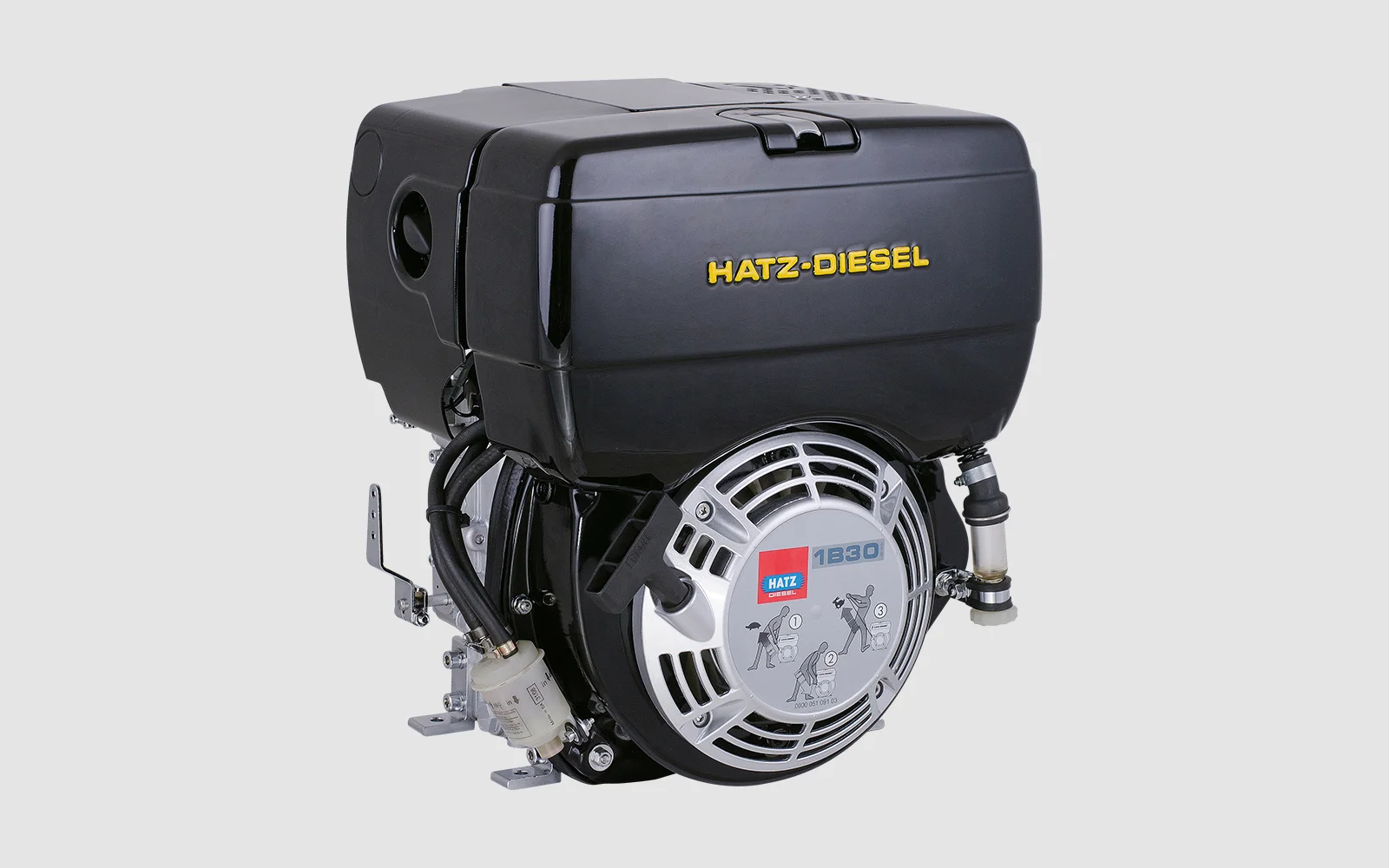

Hatz 1B30

1B30

  • Power
    2.3 - 5.0 kW
  • Torque
    16.2 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EU Stage V
Hatz 1B30E

1B30E

  • Power
    2.1 - 4.5 kW
  • Torque
    14.7 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EPA Tier IV final and EU Stage V
Hatz 1B30VE

1B30VE

  • Power
    2.1 - 4.1 kW
  • Torque
    14.7 Nm
  • Speed
    3000 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EPA Tier IV final and EU Stage V
Hatz 1B40

1B40

  • Power
    3.5 - 7.3 kW
  • Torque
    23.4 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EU Stage V
Hatz 1B50

1B50

  • Power
    3.9 - 7.9 kW
  • Torque
    25.6 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EPA Tier IV final and EU Stage V
Hatz 1B50E

1B50E

  • Power
    3.9 - 7.9 kW
  • Torque
    25.6 Nm
  • Speed
    3600 RPM
  • Type
    Air-cooled single-cylinder 4-stroke diesel engine
  • Exhaust certificate
    Certified to EPA Tier IV final and EU Stage V
